BTO-10 Hot dipped galvanized Concertina Razor Barbed Wire

FOB Reference Price:Get Latest Price
US $700-1,000 / Tons | 1 Ton/Tons Concertina wire (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Hebei, China (Mainland)
Brand Name:
Sinodiamond
Model Number:
JSW14032401
Material:
Stainless Steel Wire
Surface Treatment:
Galvanized
Type:
Barbed Wire Coil
Razor Type:
Cross Razor
Product name:
Concertina Razor Barbed Wire
Coil Diameter:
450mm, 700mm, 900mm, 950mm
Application:
Protection
Packing:
Woven Bag
Size:
BTO-10,22,30
Supply Ability
Supply Ability:
5000 Ton/Tons per Month Concertina wire
Packaging & Delivery
Packaging Details
5 ROLLS/CARTON, OR AS PER ORDER
Port
TIANJIN,CHINA
Lead Time :
Within 20 days for one container



Razor Barbed Wire, Concertina Barbed Wire, Blade Wire, Concertina Razor Barbed wire



We are capable of produce traditional razor wire, razor wire in straight lines, razor wire in concertina single coils or crossed coils. A variety of blade type and sizes are for the choice of our customers. Standard materials for razor wire are either Hot-dipped galvanized or stainless steel.
Materials: Hot dipped galvanized, electro galvanized, stainless steel, etc


Assortment:

razor barbed wire can be supplied in straight line razor wire, single coils razor wire or crossed concertina razor coils
Concertina razor wire, razor barbed wire , mainly used for safety scope.



Specifications:



Reference number

Thickness

Wire Dia

Barb length

Barb width

Barb spacing

BTO-10

0.5±0.05

2.5±0.1

10±1

13±1

26±1

BTO-12

0.5±0.05

2.5±0.1

12±1

15±1

26±1

BTO-18

0.5±0.05

2.5±0.1

18±1

15±1

33±1

BTO-22

0.5±0.05

2.5±0.1

22±1

15±1

34±1

BTO-28

0.5±0.05

2.5±0.1

28±1

15±1

45±1

BTO-30

0.5±0.05

2.5±0.1

30±1

18±1

45±1

CBT-60

0.5±0.05

2.5±0.1

60±2

32±1

100±2

CBT-65

0.5±0.05

2.5±0.1

65±2

21±1

100±2



Specification of concertina razor wire

Outside diameter

No.of loops

Standard length per coil

Type

Notes

450mm

33

7-8M

CBT-60.65

Single coil

500mm

56

12-13m

CBT-60.65

Single coil

700mm

56

13-14m

CBT-60.65

Single coil

960mm

56

14-15m

CBT-60.65

Single coil

450mm

56

8-9m(3 clips)

BTO-10.12.18.22.28.30

Cross type

500mm

56

9-10m(3 clips)

BTO-10.12.18.22.28.30

Cross type

600mm

56

10-11m(3 clips)

BTO-10.12.18.22.28.30

Cross type

600mm

56

8-10m(5clips)

BTO-10.12.18.22.28.30

Cross type

700mm

56

10-12m(5 clips)

BTO-10.12.18.22.28.30

Cross type

800mm

56

11-13m(5 clips)

BTO-10.12.18.22.28.30

Cross type

900mm

56

12-14m(5 clips)

BTO-10.12.18.22.28.30

Cross type

960mm

56

13-15m(5clips)

BTO-10.12.18.22.28.30

Cross type

980mm

56

14-16m(5 clips)

BTO-10.12.18.22.28.30

Cross type

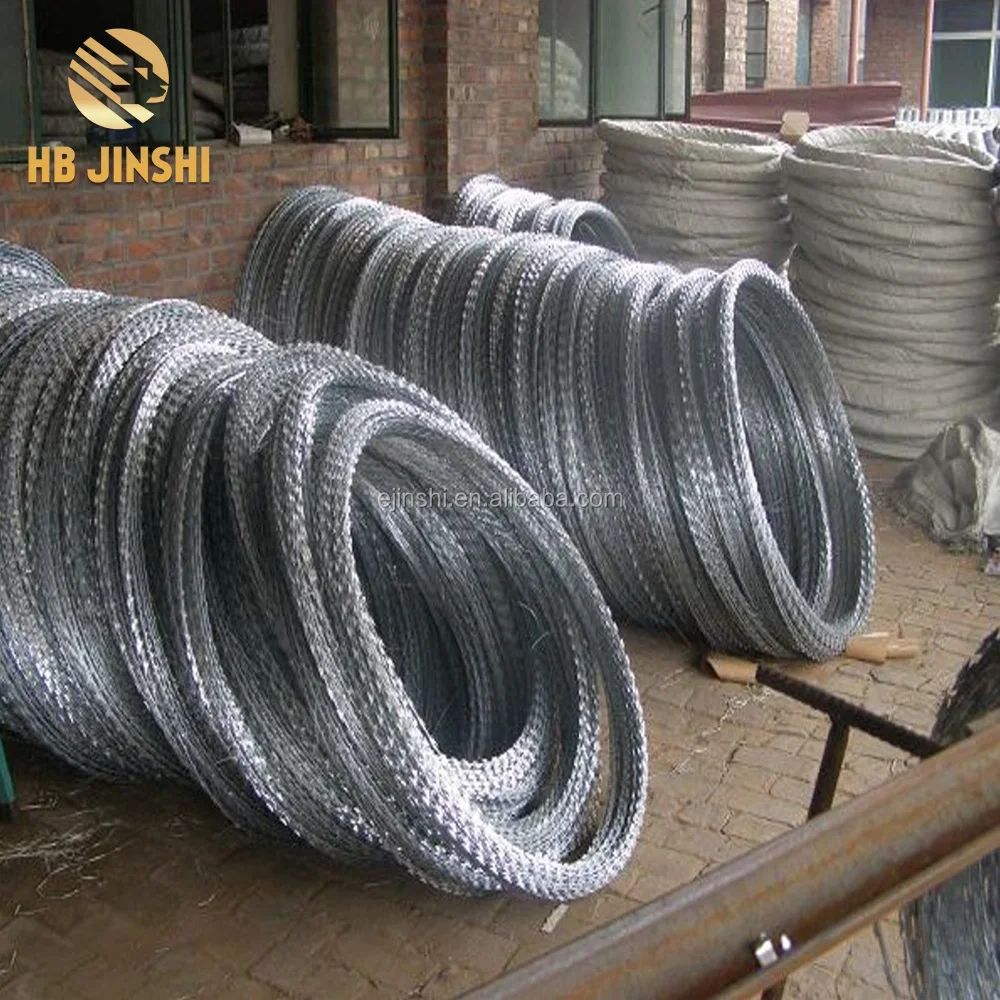

PRODUCTION SHOW:



BTO-22 razor wire 2DSC_4615_37153538 razor wire 6

Company Information

Hebei Jinshi Industrial Metal Co.,Ltd established in 2006, is an ISO9001:2008 and BV certified manufacturer in regard to the manufacturing and processing of stainless steel wire mesh, galvanized wire mesh, welded wire mesh and series wire mesh products.



Quality Policy:

First-class quality goods backed with technology innovation.



Quality Objectives:

To satisfy the customers and to build the good reputation with our quality products and services.



Quality Control:

1 Standard inspection of incoming materials
2 In-process Control: Emphasizing site inspection, independent inspections and full inspections.
3 Intensive finished products inspections.



Alibaba-BV Certificate.jpg

Preponderance

Professional:More than 10 years ISO Manufacture!!

Fast and Efficient: Ten Thousand daily production capacity!!!

Quality System: CE and ISO Certificate.



Trust your Eye,Choose us, be to Choose Quality.
