Galfan wire plastic coated Hexagonal Mesh Woven Stone filled Gabion basket

FOB Reference Price:Get Latest Price
US $5-50 / Pieces | 100 Piece/Pieces Gabion basket (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Hebei, China (Mainland)
Brand Name:
Sinodiamond
Model Number:
Gabion mesh
Material:
Galvanized Iron Wire, Low-Carbon Iron Wire
Type:
Chain Link Mesh
Application:
Gabions
Hole Shape:
Hexagonal
Aperture:
60X80mm,80X100mm,100X120mm.
Wire Gauge:
2.0mm,2.2mm,2.7mm
Surface treatment:
galvanized,pvc coated
Product name:
Gabion basket
Supply Ability
Supply Ability:
5000 Set/Sets per Day Gabion basket
Packaging & Delivery
Packaging Details
compaction and bundle or pallets or according your request
Port
Xingang ,China
Lead Time :
7-14days

Galvanized and pvc coated Pvc coated Hexagonal River protection Gabion baskets



Hexagonal River protection Gabion baskets is woven by the hexagonal mesh, the wire diameter , the mesh size and the surface coated is as customer's require



Gabions baskets is the gabion which are woven by the hexagonal mesh, the diameter

thickness depends on the mesh size, the dia. Is between 2.0mm to 4.0mm if the

material is zinc coated, while the dia will be 3.0mm to 4.5mm if the material is

PVC-coated wire, the selvage wire dia usually is one gauge thicker than the body

wire dia.



Advantages of Jinshi gabion baskets



1.Gabion mat strength lies in their double twisted hexagonal mesh of steel wire

  which is reinforced by selvedges of heavier wire running along the edges.

2.The base section is divided into compartments to restrict the movement of stone and

  strengthen the structure.

3.The lid is supplied as a separate panel.

4.The wire will not unravel even when cut.

5.Assembly is easy, requiring no specialized labor and nearby rock is used for fill.

6.Free drainage and 30-35% voids allow vegetation to grow.



Purpose:

1.Controlling and leading the river and flood

2.Flood discharge and lead flow

3.rock fall defending

4.preventing the water and soil lost

5.protecting the bridge

6.reinforce fabric

7.seashore recovery project

8.seaport project

9.block wall

10.defending the roadward.

(heavy hexagonal wire mesh)



Gabion mesh

mesh (MM)

wire (MM)

  wire (PVCwire )/inner/outside(MM)

biggest width (MM)

60X80

2.0-2.8

2.0/3.0-2.5/3.5

4.3

80X100

2.0-3.2

2.0/3.0-2.8/3.8

4.3

80X120

2.0-3.2

2.0/3.0-2.8/3.8

4.3

100X120

2.0-3.4

2.0/3.0-2.8/3.8

4.3

100X150

2.0-3.4

2.0/3.0-2.8/3.8

4.3

120X150

2.0-4.0

2.0/3.0-3.0/4.0

4.3

Note: PVC coated hexagonal wire diameter up to 4.0mm, maximum 4.5mm wire edge



Size of Gabion mesh

Mesh wire Gi. Dia.

Selvedge Wire Gi.Dia

Standard  Mesh

Dimensions(LxWxH)

2.0mm

2.2mm

2.7mm

2.7mm

3.0mm

3.4mm

60X80mm

80X100mm

100X120mm..

1mX1mX1m,

2X1mX1m

3X1mX1m….

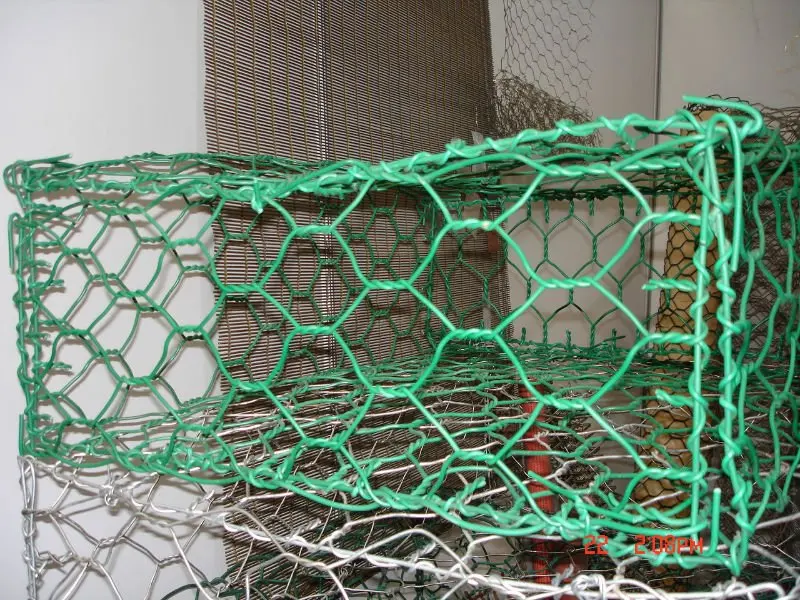

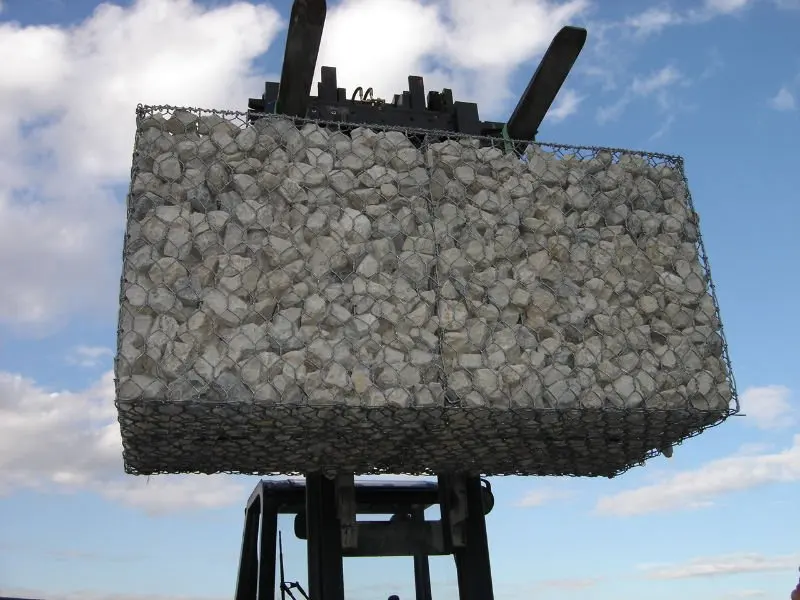

Picture Reference:




 044






chiken mesh.jpg



ISO9001BV Certificate
