Hot dipped galvanized gabion basket retaining wall factory price

FOB Reference Price:Get Latest Price
US $1.5-3 / Square Meters | 100 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Hebei, China (Mainland)
Brand Name:
JINSHI
Model Number:
Js-Gw-62
Material:
Galvanized Iron Wire, Galvanized Iron Wire
Type:
Chain Link Mesh
Application:
Construction Wire Mesh
Hole Shape:
Square
Aperture:
60x80mm 80x100mm 100x120mm 100x150mm
Wire Gauge:
2.0 to 4.0mm
Gabion mesh:
Gabion mesh
Construction is simple:
Construction is simple
Rock fall protection:
Rock fall protection
Water and soil protection:
Water and soil protection
Bridge protection:
Bridge protection
Strengthening structure of soil:
Strengthening structure of soil
Protection engineering of seaside area:
Protection engineering of seaside area
Keep off dust wall:
Keep off dust wall
roadway protection:
roadway protection
Hexagonal Wire Mesh:
Hexagonal Wire Mesh
Supply Ability
Supply Ability:
6000 Set/Sets per Month 200sets per day
Packaging & Delivery

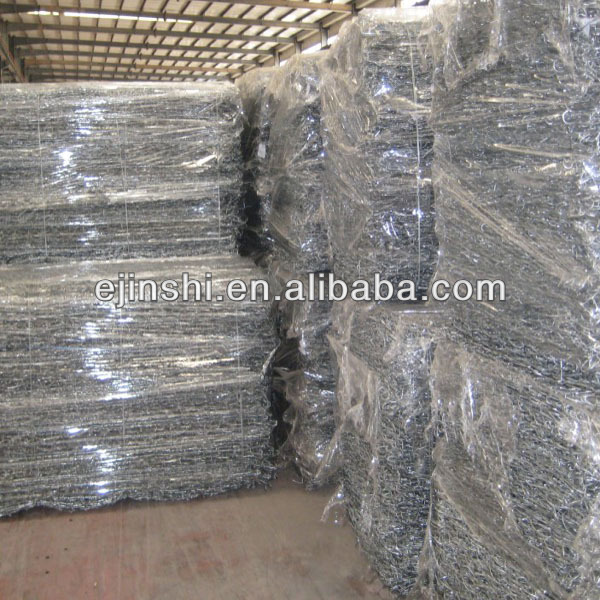

Packaging Details
packing in pallet
Port
Tianjin
Lead Time :
15 - 20 days after confirm the order

Specifications

gabion basket retaining wall
1.mesh:60x80mm 80x100mm 100x120mm 100x150mm
2.Diameter:2.0 to 4.0Mm.
3.strands: 1 2 3

 gabion basket retaining wall

In order to reinforce gabions configurable intensity, all of the face halftone side adopt more thick steel.control and lead to water or flood, water and soil protection, keep off dust wall.

Characteristics :

  • Economy. It only needs to load a stone cage can be sealed.
  • Construction is simple, without special skills.
  • A strong withstand natural damage and corrosion resistance and resistance to adverse effects of climate.
  • Withstand large-scale deformation, and does not collapse.
  • Cage rock crevice between the mud to plant production, with the surrounding natural environment melting together.
  • Has good permeability to prevent static fluid from the damage caused.
  • Save transportation costs. Can be folded up its transport, assembly on site.



Opening
(mm)

Wire Diameter(Metal Wire)    (mm)

Wire Diameter (PVC Coate)/ Inner/Outside(mm)

Strands

60X80

Ø2.0-2.8

Ø2.0/3.0-2.5/3.5

3

80X100

Ø2.0-3.2

Ø2.0/3.0-2.8/3.8

3

80X120

Ø2.0-3.2

Ø2.0/3.0-2.8/3.8

3

100X120

Ø2.0-3.4

Ø2.0/3.0-2.8/3.8

3

100X150

Ø2.0-3.4

Ø2.0/3.0-2.8/3.8

3

120X150

Ø2.0-4.0

Ø2.0/3.0-3.0/4.0

We are also able to produce as clients' requirements.
