1X1X1 Hexagonal Sea Wall Plastic coated gabion box

FOB Reference Price:Get Latest Price
US $0.97-3.75 / Square Meters | 10000 Square Meter/Square Meters negotiate (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Hebei, China (Mainland)
Brand Name:
sinodiamond
Model Number:
factory
Material:
Galvanized Iron Wire, Low-Carbon Iron Wire, Low Carbon Steel, Galfan Wire
Type:
hexagonal or welded, Hexagonal mesh. welded mesh
Application:
Gabions
Hole Shape:
Hexagonal
Wire Gauge:
1.7-5.0
color:
silver green
material::
G.I. wire,pvc coated,galfan wire
Mesh:
60 x 150
Wire Diameter:
1.5mm - 6.0mm
Uses:
River, Groynes, Barrier etc
Aperture:
60*150
Supply Ability
Supply Ability:
10000 Square Meter/Square Meters per Week according your request
Packaging & Delivery
Packaging Details
pallets or according your request
Port
tianjin china
Lead Time :
7-10 days for one 20'FCL

1X1X1 Hexagonal Sea Wall Plastic coated gabion box


G.I. wire,pvc coate,galfan wire
Wire1.7-5.0mm
ISO/SGS/CE
FACTORY




Product Description

Introduction



Gabions: a double-twisted wire mesh container of variable sizes, uniformly partitioned into internal cells, interconnected with other similar units, and filled with stone at the project site to form flexible, permeable, monolithic structures such as retaining walls, sea wall, channel linings, revetments, and weirs for erosion control projects.



Uses



1.for permanent erosion control in channels, streambank, spillways and stable slopes from surficial erosion.

2.The stone confinement within the units allows for higher shear stress resistance than the riprap.



Advantages of Jinshi gabion mesh



1.Gabion mat strength lies in their double twisted hexagonal mesh of steel wire which is reinforced by selvedges of heavier wire running along the edges.

2.The base section is divided into compartments to restrict the movement of stone and strengthen the structure.

3.The lid is supplied as a separate panel.

4.The wire will not unravel even when cut.

5.Assembly is easy, requiring no specialized labor and nearby rock is used for fill.

6.Free drainage and 30-35% voids allow vegetation to grow.



Table of sizes for Gabion Mesh



Specified size(mm)
Diameter of wire (mm)
Inside Diameter/Outside Diameter(mm)
Max Wide Cut(m)
60X80
φ2.0-2.8
φ2.0/3.0-2.8/3.8
4.3
80X100
φ2.2-3.2
φ2.2/3.2-3.0/4.0
4.3
80X120
φ2.2-3.2
φ2.2/3.2-3.0/4.0
4.3
100X120
φ2.4-3.5
φ2.4/3.4-3.2/4.2
4.3
100X150
φ2.4-3.5
φ2.4/3.4-3.2/4.2
4.3
120X150
φ2.7-4.0
φ2.7/3.7-3.5/4.5
4.3
Note: PVC coated hexagonal wire diameter up to 4.0mm, maximum 4.5mm wire edge





Picture Reference,



Gabion Mesh







Gabion Mesh Machine



Gabion Mesh Uses



Welded Gabion Mesh




Packaging & Shipping

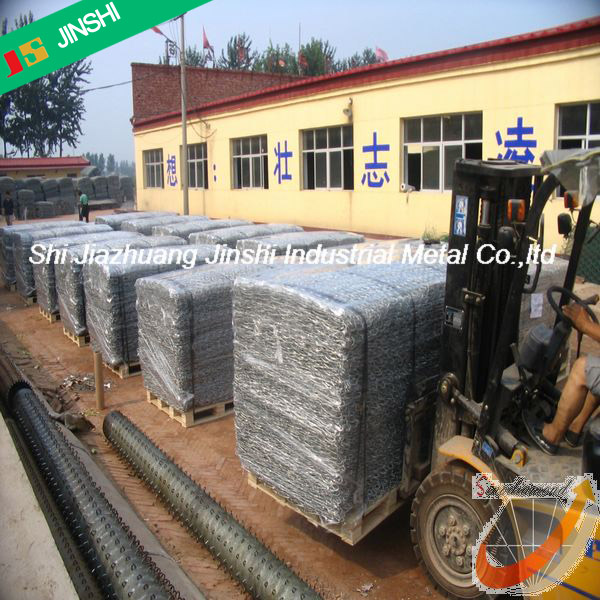

Gabion Mesh Packing



Gabion Mesh Loading
